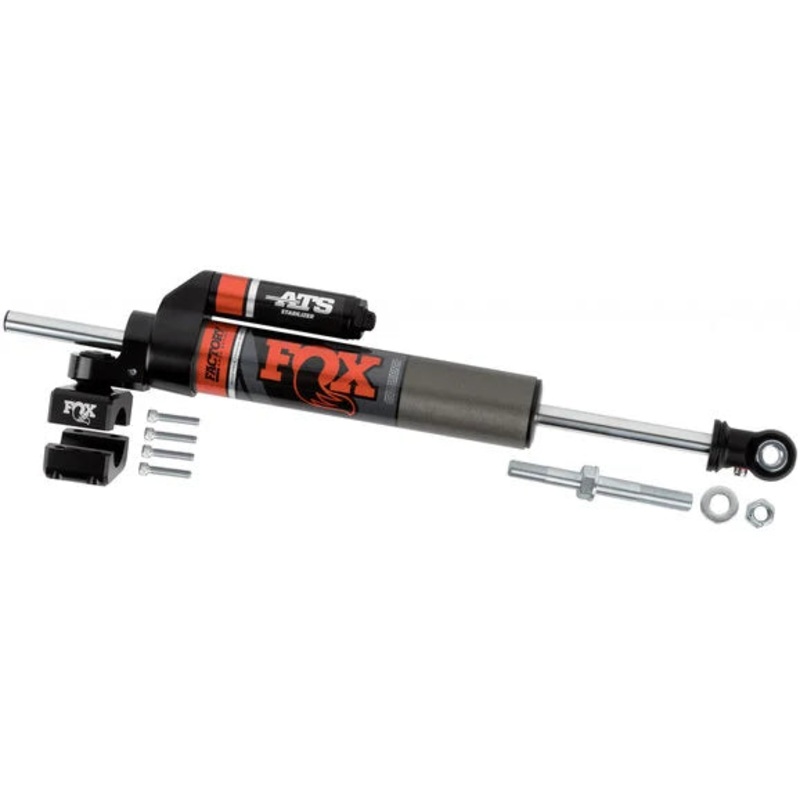

Fox Racing Shox Factory Race Series 2.0 ATS Steering Stabilizer for 07-18 Jeep Wrangler JK

Description

Smooth out the ride in your Jeep Wrangler JK with the Fox Racing Shox Factory Race Series 2.0 ATS Steering Stabilizer. This direct fit steering stabilizer features an external adjuster with twenty-four points of adjustment, allowing it to be fine-tuned to your driving style. Install is 100% bolt on, so no cutting, drilling, or other modifications are required. To avoid cavitation and fade, the Factory Race Series 2.0 Series ATS Steering Stabilizer utilizes Fox’s IFP (Internal Floating Piston) design. The external reservoir keeps shock oil separate from the high-pressure nitrogen. Unlike most steering stabilizers, the ATS is neutrally charged, so it will not push or pull your steering.

Learn More

Factory Race Series 2.0 ATS Steering Stabilizer Specs:

Shock Body Diameter: 2″

Shock Body Material: 6061-T6 Aluminum

Shock Body Finish: Clear Hard Anodized

Shock Component Material: 6061-T6 Aluminum

Shock Component Finish: Black Hard Anodized

Shaft Diameter: 5/8″

Shaft Material: Heat-Treated Steel Alloy

Shaft Finish: Hard Chrome Plating

Piston: Race-Developed High-Flow Design

Redundant Valve Seals: Main Seal, Wiper Seal, and Scraper Seal

Shock Oil: JM92 Advanced Suspension Fluid

Shock Gas: High Pressure Nitrogen

Bushing Material: Black Nitrile Rubber

Adjustable: 24 Clicks of Adjustability

Charge: Neutrally Charged

Extended Length: 22.15″ (562.61mm)

Collapsed Length: 14.06″ (357.12mm)

Travel: 8.10″ (205.74mm)

Installation Notes

Installation Difficulty:
Level 2 Intermediate
Installation Time: Less than an hour

Installation Instructions

Parts Included

Steering Stabilizer

Warranty

Limited One Year Warranty

Specs

For 1-3/8″ Tie Rod (Stock):

For 1-1/2″ Tie Rod:

For 1-5/8″ Tie Rod:

Fitment

Jeep Wrangler 2-Door (JK)

Jeep Wrangler Unlimited 4-Door (JK)

Options

Fox Racing Shox Factory Race Series 2.0 ATS Steering Stabilizer Options
