Description

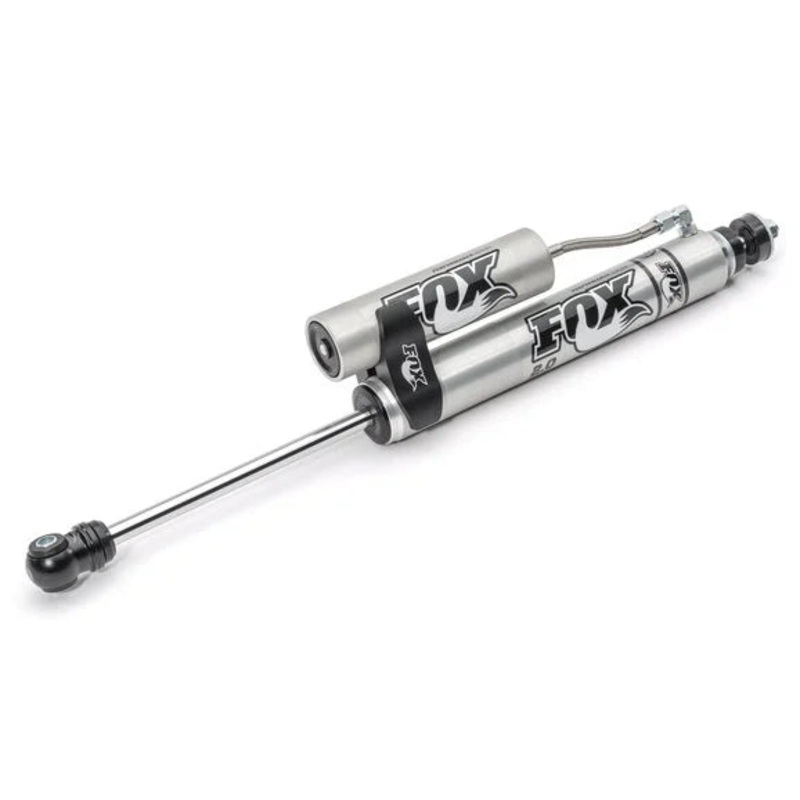

The aluminum bodied 2.0 Performance Series Reservoir smooth body shock for your Wrangler JK delivers FOX’s industry leading performance in an affordable, hassle-free bolt on package. The heat reducing design includes a metal impacted clear anodized aluminum shock body that dissipates heat faster than a conventional steel body shock. Its external reservoir allows for increase oil and nitrogen capacity while delivering a race style look. To compliment the racing look a CNC machined, 6061-T6 aluminum black anodized reservoir mounting clamp is included. The high flow damping piston matched with application specific valving gives the 2.0 Performance Series Reservoir shock predicable ride quality capable of handling the roughest on and off road conditions. Shocks are also available with a Dual Speed Compression adjustment knob for the most perfect suspension tuning and ride quality control.
Learn More
Body: 2.0″ Metal impacted 6061-T6 aluminum will resist rust over time
Body Plating: Clear-anodized for a durable finish
External Reservoir: 2.0″ Smooth bore 6061-T6 Aluminum is hard anodized
Components: Black-anodized, CNC-machined 6061-T6 billet aluminum
Shaft: 5/8″ hard chrome plated heat-treated alloy steel
Piston: Race-developed high-flow piston design
Seals: Redundant sealing pack system main seal, wiper seal, scraper seal
Oil: JM92 Advanced Suspension Fluid for improved performance at variable temperatures
Bushings: Quiet nitrile rubber allows for increased suspension articulation
Mounting: Direct replacement for stock and aftermarket lifts kits
Options: Dual Speed Compression Damping (CD) Adjustment
Installation Notes
Installation Difficulty:
Level 2 Intermediate
Installation Time: 1-2 hours
Parts Included
Shock – Each
Billet Reservoir Clamp – Each
Warranty
Limited One (1) Year
Specs
For 1.5-3.5″:
Color: Silver
Features: Monotube, Nitrogen Charged, Remote Reservior
Location: Front
Fits Lift Heights: 1.50, 1.75, 2.00, 2.25, 2.50, 2.75, 3.00, 3.25, 3.50
Lift Range: 0 – 2.5 inch, 3 – 4.5 inch
Front Collapsed Length: 15.200″
Front Extended Length: 24.800″
Front Travel: 9.60″
Shock Valving: Universal
Additional Info: Fox Shock lengths are measured from the bottom of the stem to the center of the eyelet.
Shipping Weight: 4lb
Shipping Dimensions: 42in x 6in x 3in (L x W x H)
For 4-6″:
Color: Silver
Features: Monotube, Nitrogen Charged, Remote Reservior
Location: Front
Fits Lift Heights: 4.00, 4.25, 4.50, 4.75, 5.00, 5.25, 5.50, 5.75, 6.00
Lift Range: 3 – 4.5 inch, 5 inch and up
Front Collapsed Length: 16.700″
Front Extended Length: 28.300″
Front Travel: 11.60″
Shock Valving: Universal
Additional Info: Fox Shock lengths are measured from the bottom of the stem to the center of the eyelet.
Shipping Weight: 4lb
Shipping Dimensions: 42in x 6in x 3in (L x W x H)
For 6.5-8″:
Color: Silver
Features: Monotube, Nitrogen Charged, Remote Reservior
Location: Front
Fits Lift Heights: 6.50, 6.75, 7.00, 7.25, 7.50, 7.75, 8.00
Lift Range: 5 inch and up
Front Collapsed Length: 17.700″
Front Extended Length: 29.800″
Front Travel: 12.10″
Shock Valving: Universal
Additional Info: Fox Shock lengths are measured from the bottom of the stem to the center of the eyelet.
Shipping Weight: 7lb
Shipping Dimensions: 41in x 6in x 3in (L x W x H)
For 2.5-4″:
Color: Silver
Features: Monotube, Nitrogen Charged, Remote Reservior
Location: Front
Fits Lift Heights: 2.50, 2.75, 3.00, 3.25, 3.50, 3.75, 4.00
Lift Range: 0 – 2.5 inch, 3 – 4.5 inch
Front Collapsed Length: 15.700″
Front Extended Length: 25.800″
Front Travel: 10.10″
Shock Valving: Universal
Additional Info: Fox Shock lengths are measured from the bottom of the stem to the center of the eyelet.
Shipping Weight: 12lb
Shipping Dimensions: 41in x 6in x 3in (L x W x H)
Fitment
Jeep Wrangler 2-Door (JK)
2018 Jeep Wrangler 2-Door (JK)
2017 Jeep Wrangler 2-Door (JK)
2016 Jeep Wrangler 2-Door (JK)
2015 Jeep Wrangler 2-Door (JK)
2014 Jeep Wrangler 2-Door (JK)
2013 Jeep Wrangler 2-Door (JK)
2012 Jeep Wrangler 2-Door (JK)
2011 Jeep Wrangler 2-Door (JK)
2010 Jeep Wrangler 2-Door (JK)
2009 Jeep Wrangler 2-Door (JK)
2008 Jeep Wrangler 2-Door (JK)
2007 Jeep Wrangler 2-Door (JK)
Jeep Wrangler Unlimited 4-Door (JK)
2018 Jeep Wrangler Unlimited 4-Door (JK)
2017 Jeep Wrangler Unlimited 4-Door (JK)
2016 Jeep Wrangler Unlimited 4-Door (JK)
2015 Jeep Wrangler Unlimited 4-Door (JK)
2014 Jeep Wrangler Unlimited 4-Door (JK)
2013 Jeep Wrangler Unlimited 4-Door (JK)
2012 Jeep Wrangler Unlimited 4-Door (JK)
2011 Jeep Wrangler Unlimited 4-Door (JK)
2010 Jeep Wrangler Unlimited 4-Door (JK)
2009 Jeep Wrangler Unlimited 4-Door (JK)
2008 Jeep Wrangler Unlimited 4-Door (JK)
2007 Jeep Wrangler Unlimited 4-Door (JK)
Options
Fox Racing Shox Front 2.0 Performance Series Remote Reservoir Shock Options
| Part Number |
Catalog # |
Lift Height |
Price |
|
| 985-24-015 |
16335-4100 |
1.5-3.5″ |
$349.95 |
|
| 985-24-011 |
16335-4102 |
4-6″ |
$349.95 |
|
| 985-24-013 |
16335-4104 |
6.5-8″ |
$349.95 |
|
| 985-24-039 |
16335-4107 |
2.5-4″ |
$349.95 |
|
