Description

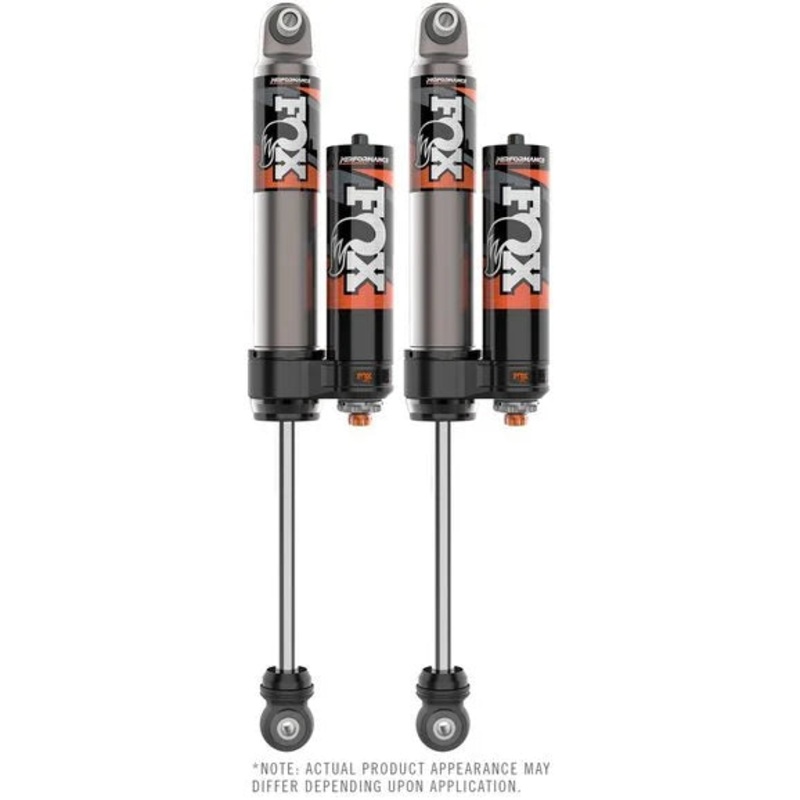

The aluminum bodied 2.0 Performance Series Reservoir smooth body shock for your Cherokee, Grand Cherokee and Comanche delivers FOX’s industry leading performance in an affordable, hassle-free bolt on package. The heat reducing design includes a metal impacted clear anodized aluminum shock body that dissipates heat faster than a conventional steel body shock. Its external reservoir allows for increase oil and nitrogen capacity while delivering a race style look. To compliment the racing look a CNC machined, 6061-T6 aluminum black anodized reservoir mounting clamp is included. The high flow damping piston matched with application specific valving gives the 2.0 Performance Series Reservoir shock predicable ride quality capable of handling the roughest on and off road conditions. Shocks are also available with a Dual Speed Compression adjustment knob for the most perfect suspension tuning and ride quality control.
Learn More
Body: 2.0″ Metal impacted 6061-T6 aluminum will resist rust over time
Body Plating: Clear-anodized for a durable finish
External Reservoir: 2.0″ Smooth bore 6061-T6 Aluminum is hard anodized
Components: Black-anodized, CNC-machined 6061-T6 billet aluminum
Shaft: 5/8″ hard chrome plated heat-treated alloy steel
Piston: Race-developed high-flow piston design
Seals: Redundant sealing pack system main seal, wiper seal, scraper seal
Oil: JM92 Advanced Suspension Fluid for improved performance at variable temperatures
Bushings: Quiet nitrile rubber allows for increased suspension articulation
Mounting: Direct replacement for stock and aftermarket lifts kits
Options: Dual Speed Compression Damping (CD) Adjustment
Installation Notes
Installation Difficulty:
Level 2 Intermediate
Installation Time: 1-2 hours
Parts Included
Shock – Each
Billet Reservoir Clamp – Each
Warranty
Limited One (1) Year
Specs
For 2-3.5″:
Color: Silver
Features: Monotube, Nitrogen Charged, Remote Reservior
Location: Front
Fits Lift Heights: 3.00, 3.25, 3.50, 3.75, 4.00, 4.25, 4.50
Lift Range: 3 – 4.5 inch
Front Collapsed Length: 15.200″
Front Extended Length: 25.300″
Front Travel: 10.10″
Shock Valving: Universal
Additional Info: Fox Shock lengths are measured from the bottom of the stem to the center of the eyelet.
Shipping Weight: 7lb
Shipping Dimensions: 41in x 6in x 3in (L x W x H)
For 4-6″:
Color: Silver
Features: Monotube, Nitrogen Charged, Remote Reservior
Location: Front
Fits Lift Heights: 5.00, 5.25, 5.50, 5.75, 6.00
Lift Range: 5 inch and up
Front Collapsed Length: 16.200″
Front Extended Length: 26.800″
Front Travel: 10.60″
Shock Valving: Universal
Additional Info: Fox Shock lengths are measured from the bottom of the stem to the center of the eyelet.
Shipping Weight: 4lb
Shipping Dimensions: 42in x 6in x 3in (L x W x H)
For 6.5-8″:
Color: Silver
Features: Monotube, Nitrogen Charged, Remote Reservior
Location: Front
Fits Lift Heights: 6.50, 6.75, 7.00, 7.25, 7.50, 7.75, 8.00
Lift Range: 5 inch and up
Front Collapsed Length: 17.200″
Front Extended Length: 28.800″
Front Travel: 11.60″
Shock Valving: Universal
Additional Info: Fox Shock lengths are measured from the bottom of the stem to the center of the eyelet.
Shipping Weight: 5lb
Shipping Dimensions: 26in x 3in x 3in (L x W x H)
Fitment
Jeep Cherokee (XJ)
2001 Jeep Cherokee (XJ)
2000 Jeep Cherokee (XJ)
1999 Jeep Cherokee (XJ)
1998 Jeep Cherokee (XJ)
1997 Jeep Cherokee (XJ)
1996 Jeep Cherokee (XJ)
1995 Jeep Cherokee (XJ)
1994 Jeep Cherokee (XJ)
1993 Jeep Cherokee (XJ)
1992 Jeep Cherokee (XJ)
1991 Jeep Cherokee (XJ)
1990 Jeep Cherokee (XJ)
1989 Jeep Cherokee (XJ)
1988 Jeep Cherokee (XJ)
1987 Jeep Cherokee (XJ)
1986 Jeep Cherokee (XJ)
1985 Jeep Cherokee (XJ)
1984 Jeep Cherokee (XJ)
Jeep Comanche (MJ)
1992 Jeep Comanche (MJ)
1991 Jeep Comanche (MJ)
1990 Jeep Comanche (MJ)
1989 Jeep Comanche (MJ)
1988 Jeep Comanche (MJ)
1987 Jeep Comanche (MJ)
1986 Jeep Comanche (MJ)
Jeep Grand Cherokee (WJ)
2004 Jeep Grand Cherokee (WJ)
2003 Jeep Grand Cherokee (WJ)
2002 Jeep Grand Cherokee (WJ)
2001 Jeep Grand Cherokee (WJ)
2000 Jeep Grand Cherokee (WJ)
1999 Jeep Grand Cherokee (WJ)
Jeep Grand Cherokee (ZJ)
1998 Jeep Grand Cherokee (ZJ)
1997 Jeep Grand Cherokee (ZJ)
1996 Jeep Grand Cherokee (ZJ)
1995 Jeep Grand Cherokee (ZJ)
1994 Jeep Grand Cherokee (ZJ)
1993 Jeep Grand Cherokee (ZJ)
Options
Fox Racing Shox Front 2.0 Performance Series Remote Reservoir Shock Options
| Part Number |
Catalog # |
|
|
|
|
|
|
Price |
|
| 985-24-108 |
16335-4115 |
2-3.5″ |
|
|
|
|
|
$349.95 |
|
| 985-24-109 |
16335-4116 |
4-6″ |
|
|
|
|
|
$349.95 |
|
| 985-24-110 |
16335-4117 |
6.5-8″ |
|
|
|
|
|
$349.95 |
|
