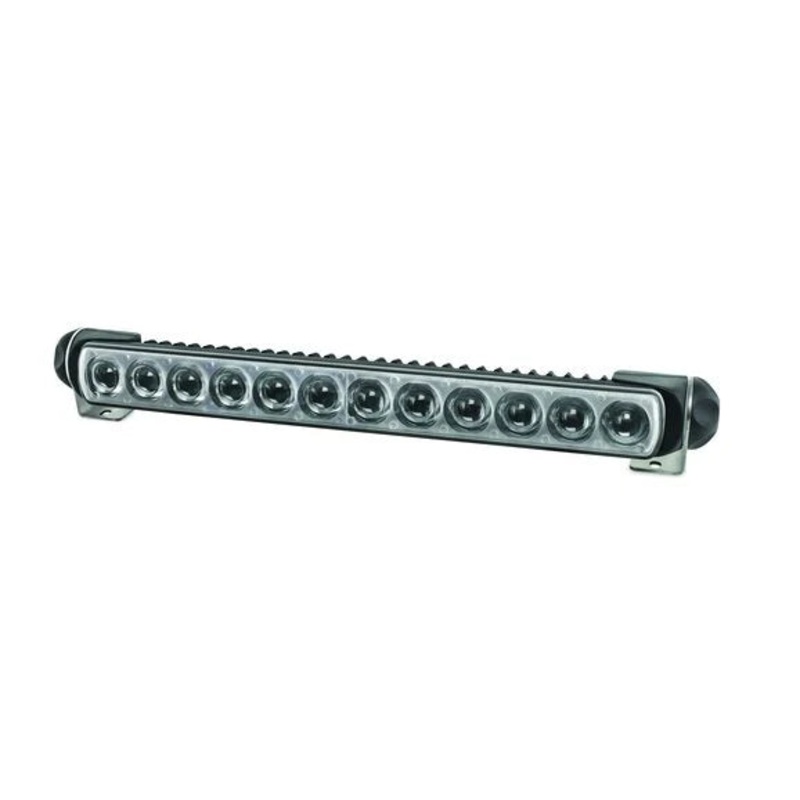

Hella 350 Series 16″ LED Light Bar

Description

Learn More

Ideal for:
• Long range
• Off road use (Driving and Pencil beam versions ECE approved)
• Trucks / SUVs / ATVs / UTVs / Off-road vehicles

Features:

• Compact LED light bar
• 16″ (408mm) long and low profile and lightweight at only 1.7 pounds (790 g)
• Developed for the special requirements of off-road vehicles and for aerodynamic installation on the roof of truck cabins. But due to its slim design it can be mounted in various spaces on heavy duty trucks, pick-ups and cars
• The rear of the housing is an innovative ribbed design
• Effective heat dissipation from the LED electronics through the housing made of thermoconductive plastic
• Suitable for horizontal mounting
• Stainless steel mounting brackets allow flexible positioning on the vehicle

Specifications:

• Voltage: Multivolt 9-34V DC
• Beam Pattern: Driving Beam, Pencil Beam, Wide Beam and Narrow Beam
• Number of LEDs: 12
• Power Consumption: 25W
• Luminous Flux: 1500lm
• Light Temperature: 6000K
• Weight: 1.7 pounds (790 g)
• Connection: Wire Leads
• Mounting Bracket: Stainless Steel
• Approval: Driving and Pencil Beams are ECE approved

Installation Notes

Installation Difficulty:
Level 2 Intermediate
Installation Time: 1-2 hours

Installation Instructions

Parts Included

• (1) Light Bar
• Mounting Hardware
• Step-by-Step Mounting Instructions

Specs

For Driving Beam:

For Pencil Beam:

Options

Hella 350 Series 16″ LED Light Bar Options
