Synergy Manufacturing 8050-02 F911 Suspension Hardware Kit for 07-18 Jeep Wrangler JK

Description

The NEW Synergy Suspension Suspension Hardware Kit is made from high strength F911 hardware which replaces the Control Arm (LCA) hardware that gets destroyed from wheeling abuse. It also replaces the Track Bar (TB) bolts which often get worn out from service. Replaces the Front Track Bar Frame Side (TB) bolt on 2012+ JK with a 14mm Grade 10.9 bolt. Includes hardened extra thick washers that will not deform or contort like standard washers.
Made in USA

Learn More

Installation Notes

Installation Difficulty:
Level 2 Intermediate
Installation Time: 2-3 hours

Parts Included

(8) 9/16-18 UNF x 4.0″ long F911 bolts (LCAs)
(4) 9/16-18 UNF x 3.0″ long F911 bolts (TBs)
(12) 9/16-18 UNF G9 Stover top lock nuts
(24) 9/16″ Extra Thick G9 hardened flat washers
(1) M14-2.0 x 80mm Grade 10.9 bolt (2012+ Front Frame Side Track Bar Bracket)
(1) M14-2.0 GR9 Stover top lock nut
(4) 9/16-18 UNF x 3.50″ long F911 bolts (RUCAs)
(4) M12 X 1.50 85MM (3.50″) long GR10.9 bolts (FUCAs)
(2) 9/16-18 UNF G9 Stover top lock nuts
(4) M12 x 1.50 G9 Stover top lock nuts
(4) 9/16″ Extra Thick G9 hardened flat washers
(8) 1/2″ Extra Thick G9 hardened flat washers

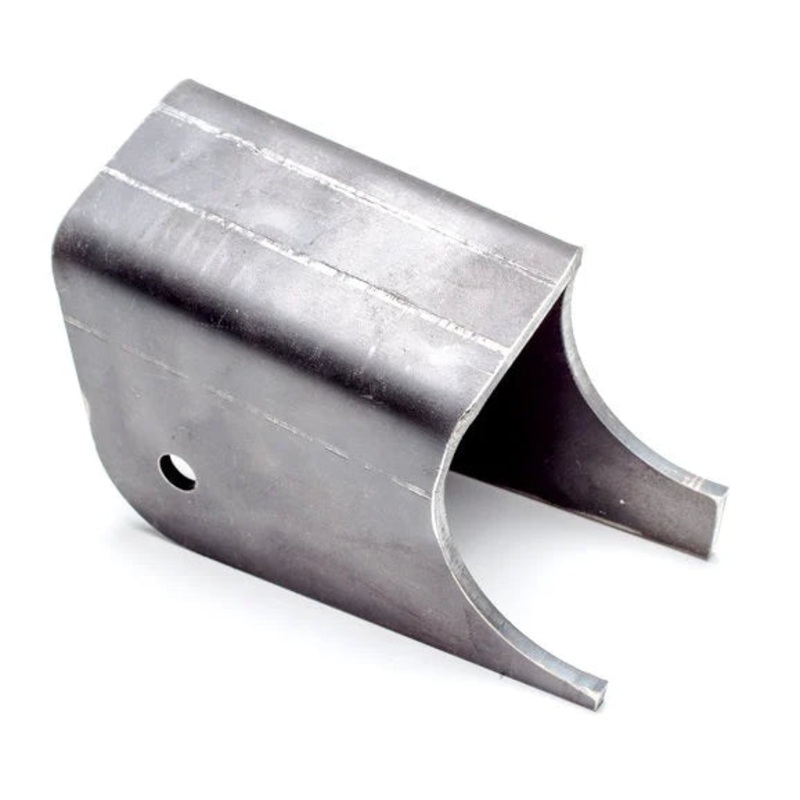

(2) Rear Upper Control Arm Nut Tab, Frame Side
(2) Rear Upper Control Arm Nut Tab, Axle Side

Specs

Fitment

Jeep Wrangler 2-Door (JK)

Jeep Wrangler Unlimited 4-Door (JK)
