Description
Run up to 33×12.50 tires on your 97-06 Jeep Wrangler TJ with this 3″ lift kit from Zone Offroad Products. This kit increases droop by an additional 4.75″, and wheel travel by 3″ over stock. Zone’s sway bar end links use urethane bushings to reduce body roll and wear. Many states have laws that limit the maximum height of a lifted vehicle. Never exceed the legal height limit.
Learn More
Installation Notes
Installation Difficulty:
Level 3 Advanced
Zone Recommends Either Using Adjustable Lower Control Arms or Their Optional Alignment Cam Kit (J5311)
Installation Instructions

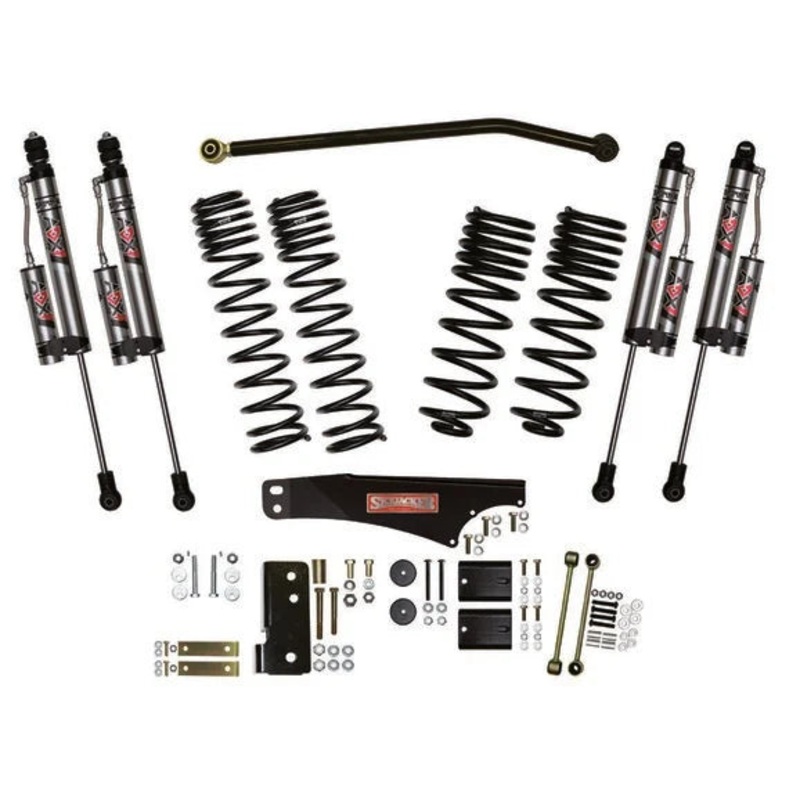

Parts Included
Front Coil Springs
Rear Coil Springs
Front Shocks
Rear Shocks
Front Sway Bar End Links
Rear Sway Bar End Links
Front and Rear Bump Stops
Rear Track Bar Relocation System
Transfer Case Lowering Kit
Installation Hardware
Warranty
Limited Lifetime Warranty
Specs
For 97-02 Wrangler TJ Nitro Shocks:
Features: Short Arm
Shocks Included: With Shocks
Max Tire Size: 33
Lift Height Range: 3 – 4.5 inch
Included Parts: Bump Stops, Coil Springs, Hardware, Rear Track Bar Bracket, Sway Bar Endlinks, Transfer Case Lowering Kit
Shipping Weight: 69
Shipping Dimensions: 43in x 15in x 12in (L x W x H)
For 03-06 Wrangler TJ and LJ Nitro Shocks:
Features: Short Arm
Shocks Included: With Shocks
Max Tire Size: 33
Lift Height Range: 3 – 4.5 inch
Included Parts: Bump Stops, Coil Springs, Hardware, Rear Track Bar Bracket, Sway Bar Endlinks, Transfer Case Lowering Kit
Shipping Weight: 71
Shipping Dimensions: 43in x 15in x 12in (L x W x H)
Fitment
Jeep Wrangler (TJ)
2006 Jeep Wrangler (TJ)
2005 Jeep Wrangler (TJ)
2004 Jeep Wrangler (TJ)
2003 Jeep Wrangler (TJ)
2002 Jeep Wrangler (TJ)
2001 Jeep Wrangler (TJ)
2000 Jeep Wrangler (TJ)
1999 Jeep Wrangler (TJ)
1998 Jeep Wrangler (TJ)
1997 Jeep Wrangler (TJ)
Jeep Wrangler Unlimited (LJ)
2006 Jeep Wrangler Unlimited (LJ)
2005 Jeep Wrangler Unlimited (LJ)
2004 Jeep Wrangler Unlimited (LJ)
Options
Zone Offroad Products 3″ Lift Kit Options
| Part Number |
Catalog # |
Year Range |
Shock Option |
Price |
|
|
16188-1101 |
97-02 Wrangler TJ |
Nitro Shocks |
$483.95 |
|
|
16188-1111 |
03-06 Wrangler TJ and LJ |
Nitro Shocks |
$483.95 |
|
